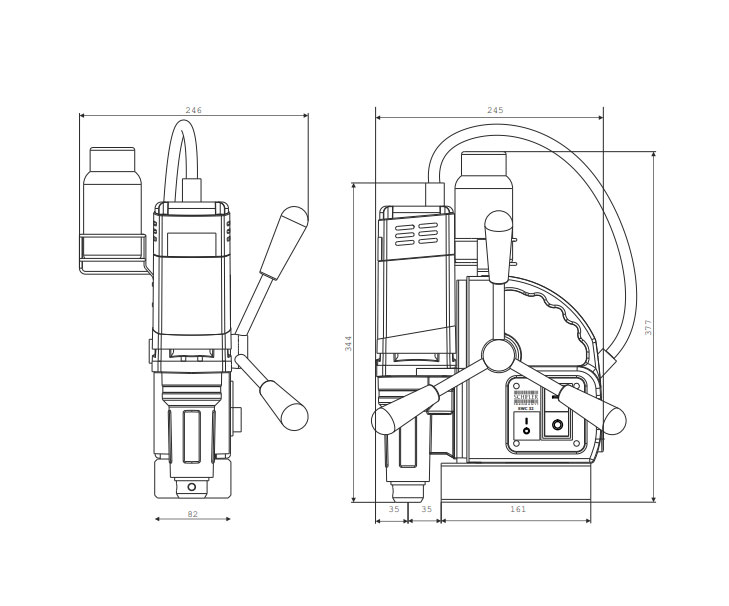

Technical Drawing
Technical Specifications
| Motor power | 1100 watt |
| Spindle | 19 mm (3/4”) Weldon |
| Broach cutter (35 mm length) | Ø 12 mm – Ø 35 mm |
| Broach cutter (50 mm length) | Ø 12 mm – Ø 35 mm |
| RPM | 450 min-1 |
| Frequency | 50-60 Hz |
| Weight | 10kg(22.0lbs) |
| Magnet power | 10000 N |
| Input supply voltage | 220-240 V |
