Magnetic Drilling Machine SWC 65 WT

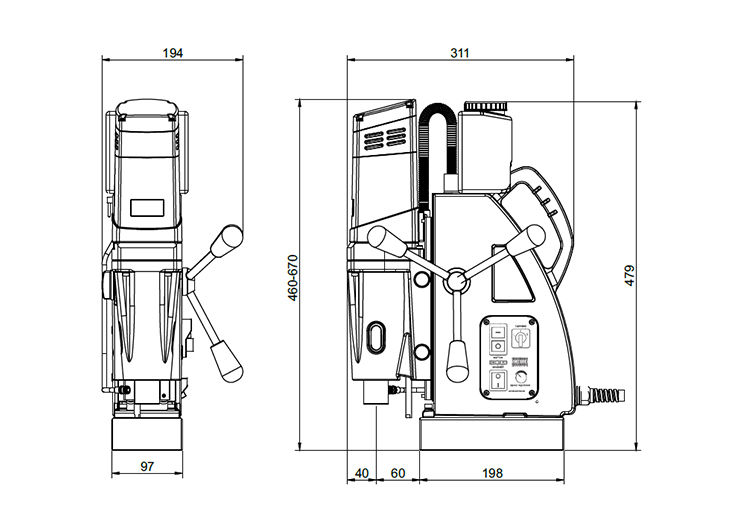

 Technical Drawing

 Technical Specifications

Motor power 1600 watt
Spindle MT3, 19 mm Weldon
Broach cutter (35 mm length) Ø 12 mm – Ø 65 mm
Broach cutter (50 mm length) Ø 12 mm – Ø 65 mm
Broach cutter (80 mm length) Ø 18 mm – Ø 65 mm
Tapping Ø 20 mm
Twist drill Ø 23 mm
RPM 250 min-1/450 min-1
Flexible Stroke Upto 205 mm
Weight 16kg (59.5 lbs)
Magnet power 18000 N
Input supply voltage 220 V-240V / 50-60 Hz
