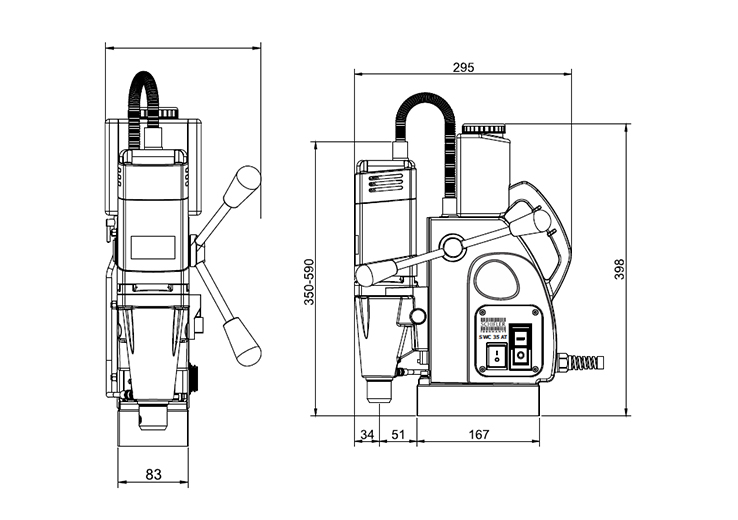

Technical Drawing
Technical Specifications
| Motor power | 1100 watt |
| Spindle | 19 mm (3/4”) Weldon |
| Broach cutter (35 mm length) | Ø 12 mm – Ø 35 mm |
| Broach cutter (50 mm length) | Ø 12 mm – Ø 35 mm |
| Twist Drill | Upto Ø 13 mm |
| RPM | 450 min-1 |
| Flexible Stroke Upto | 240 mm |
| Weight | 15 kg (26,8 lbs) |
| Magnet power | 10000 N |
| Input supply voltage | 220V-240 V |
| Frequency | 50-60 Hz |
| Electro Torque Control | Yes |
Standard Accessories
Drill Chuck
Adaptor
Allen Key 2.5,4,6
Pilot Pin 6x50, 8x50
Safety Belt
